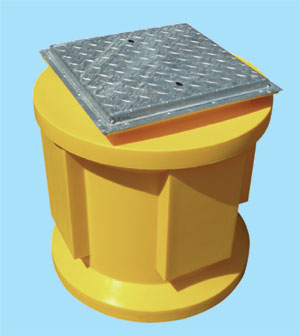

Sumps and Pumps - Aqua Channel for perimeter drainage

Chemical Treatments that are used with Membranes


Wet Room, Shower and Bathroom Membranes

Wet Room Floor Membrane - Wet Room Wall Membrane

Wet Room Membrane Tape - Wet Room Shower Kit with Drainage

Technical Help

Membrane Kits Page - shows prices of example kits


Why are we so different?

Because we offer 1 metre wide rolls of all Membrane types

and we supply Membrane by the metre, plus part boxes of plugs and seals.

Our Special Membrane at 1 metre wide is easy to carry and lift up to fit onto walls.

No waste. No left over parts. Low cost delivery. No cost of disposal.

We will assemble your chosen lengths of Membrane, quantities of plugs,

plug seals and tape to provide you with exactly the Kit you need for your Project.

No need to waste money on complete rolls or full boxes of plugs. Just give us the wall and floor dimensions

and we will give you the most competitive price for your exact needs.


Wall Kontract Membrane - 1 metre and 2 metre width options

For use with wooden battens or a 'stud' frame

Uses - to line damp or salty walls and floors above or below ground

Kontract Membrane, for walls or floors

Kontract Membrane on the roll

Kontract Membrane with battens fitted.

Kontract Membrane behind a stud frame - no plugs required

Stud wooden frame retains Membrane - no plugs. Ideal for stone or other difficult to drill walls.

Ready to fit insulation between the battens, then nail or screw on plasterboard.

Click here for information on Damp Proofing walls

Click to go to the top index

Choose your own size - call 01626 872886 for an instant price


Thickness - 8mm dimple height.

Width options - Full Width Rolls - 2 metres wide, or buy the Special Metre Rolls - 1 metre wide

Buy in - any length in metres at 1 metre wide (960mm exact), or Kits sized for your job, or full 20 metre rolls x 2 metres wide (40 square metres)

Unique - Special 1 metre roll (960mm exact) available - only 10kgs in weight for ease of handling and we cut these by the metre and supply part boxes of plugs

Complete Kits - supplied with all fixings, also available to suit any area of wall (or floor, but no plugs required), made up with plugs, seals and tapes to

suit your Project. We cut rolls, so there is no need for you to waste money by buying more Membrane than you need. Allow about 10% on top of the measured area for overlaps and joints.

Fitting - drill 10mm diameter holes, 76mm deep and blow or vacuum out all the dust. Hammer in the plugs with seal washers fitted to the necks until they squeeze into the dimples. Fix wooden battens to the plugs using No.10 (4.5mm diameter) self tapping screws, allowing a maximum of 25mm of thread into the plug, (plus the thickness of the batten).

Allow about 4 to 5 plugs per square metre, equivalent to 4 to 6 per batten. For non-sealed, vented versions (where you have no risk of liquid water, which would need drainage) cut the membrane 25mm short of the floor. Stop the insulation and plasterboard at the same level. Fit the skirting boards with a 5mm air gap at the bottom edge, to allow air to ventilate the space behind the membrane and to prevent 'wicking' of any residual damp from the floor into the skirting boards.

Measuring - if joints will be needed add 10% to the area measured. Joints can be made by overlapping 3 rows of dimples or by overlapping the plain edge of the membrane onto the flat faced edge (on full 2 metre wide rolls only).

Choose your own size - call 01626 872886 for an instant price


Kontract Membrane Prices - no fixings, for floors or walls

Unique product - only from us - easy to carry, light to install single-handed, low cost delivery, no waste

1 metre (960mm exactly) wide full rolls (or order any length)

£87.10 - full roll, 960mm wide x 20 metres = price per 19.20 square metres -

£4.36 - cut by the metre, 960mm metres wide x 1 metre = price per 0.96 square metres -

(£10.00 plus VAT Cutting Charge will be added for part rolls)



Standard width, full rolls only

2 metre wide x 20 metre long rolls

£174.20 - full roll, 2 metres wide x 20 metres = price per 40 square metres -



Click to go to the top index

Choose your own size - call 01626 872886 for an instant price


Wall Kontract Membrane Complete Kits - example prices

OR choose your own size - call 01626 872886 for an instant price

Based on 1m (960mm) wide Kontract Membrane

Includes plugs with seals, double sided tape or mastic rope

No plugs required for floors

£62.49 - 6 metres x 960mm = 5.76 square metres -

£100.76 - 10 metres x 960mm = 9.60 square metres -

£147.57 - 15 metres x 960mm = 14.40 square metres -

(Note - the cost of a roll of Mastic Rope or Mastic Tape can be deducted by us if no joints will be made.

Call us to specify this option)

Click to go to the top index

Choose your own size - call 01626 872886 for an instant price


Plugs for Kontract Wall Membrane to take screws,

for wooden battens

Allow 5 per square metre of wall membrane

Brick plugs with seals fitted

Plugs = 58mm in length, drill an 10mm diameter hole x 75mm deep

£110.28 - box of plugs with seals fitted, per 200 -

£0.55 - individual plugs with seals fitted, each -

Quantity Discounts Available - call 01626 872886

Click to see Plugs with Seals fitted

Click to see Tools and Accessories

Click to go to the top index


Tape for joining Kontract Wall and Floor Membrane

Double Sided - not used for joining Slimline Membranes (use our Fibre Tape)

Double sided membrane tape

£30.88 - Joint Tape, 28mm x 2mm x 22.5m per roll -

(Not available in part rolls - select Mastic Rope instead)

Click to see Tapes

Click to go to the top index


Price Match - click for our bespoke Kits which are guaranteed cheaper than any other offer.

Fixings required - click here to see Plugs, Seals and Tape photographs

Fixing layout - easy to fit with vertical battens on normal walls,

or with horizontal battens on curved walls or ceilings.

Finishing - insulate between the battens with Rockwool and then fit plasterboard.

Optional - tape the plasterboard joints and plaster skim finish.

Click here for our Dampfix Kits page - this shows you lots of Kit prices for

different sizes for each Membrane type

Click here to see Tools and Accessories

Click to go to the top index

Choose your own size - call 01626 872886 for an instant price


Mesh Wall Membrane - 1 metre and 2 metre width options

Uses - to line damp or salty walls above or below ground



Mesh Membrane with plug being fitted

Standard 8mm Mesh Membrane for walls

Slimline Mesh Membrane showing a white plug through a dimple

Slimline 3mm Mesh Membrane for walls

Click here for information on Damp Proofing walls

Click to go to the top index

Choose your own size - call 01626 872886 for an instant price


Thicknesses - 8mm dimple height or 3mm (Slimline version) dimple height.

Width options - Standard full 8mm thick rolls are 2 metres wide, or buy the Special 1 metre (960mm exact) wide rolls. Slimline 3mm thick rolls are either 2 metres or 1 metre wide.

Buy in - any length in metres, or Kits sized for your job, or full 2 metre wide x 10m Standard 8mm thick rolls or 2 metre and 1 metre wide Slimline 3mm thick rolls

Unique - Special 1 metre roll (960mm exact) available - light in weight for ease of handling and we cut these by the metre and supply part boxes of plugs

Measuring - if joints will be needed add 10% to the area measured. Joints in the 8mm Membrane can be made by overlapping 3 rows of dimples or

by overlapping the plain edge of the membrane onto the flat face. Joints in the 3mm Slimline Membrane are made by butt jointing and applying single sided Fibre Tape.

Fitting - drill 8mm diameter holes, 65mm deep and blow or vacuum out all the dust.

Hammer in the plugs (using a rubber mallet), fitted with mastic rope around the necks, until the mastic rope squeezes into the dimples.

Use 25 plugs per square metre if plastering (using Bonding Plaster) directly onto the Mesh Membrane, or 15 plugs per square metre if plasterboarding onto adhesive 'dabs'.

For non-sealed versions cut the membrane 25mm short of the floor and leave a 5mm air gap under the skirting board.

Finishing - plaster direct to the Mesh Membrane using Bonding Plaster or fit plasterboard.

Optional: tape the plasterboard joints and plaster skim finish.

Special Note: the number of plugs that you need for fixing Mesh Membrane varies, according to the intended use.

This means that you have to be careful when pricing Kits.

They may contain too few or too many plugs for your Project;

Direct plastering - with normal Bonding Plaster - allow 25 plugs per square metre,at 250mm centres.

Ensure that plaster stops 25mm short of the floor. Fit skirting boards 5mm clear of the floor.

Fixing Plasterboard - with 'dabs' of adhesive - allow 15 plugs per square metre,

one for each dab. Ensure that plasterboard and plaster skim stops 25mm short of the floor. Fit skirting boards 5mm clear of the floor.

Complete Kits - supplied with all fixings, also available to suit any area of wall, made up with plugs, plug neck seal mastic rope and tapes to suit your Project.

We cut rolls, so there is no need for you to waste money by buying more Membrane than you need.

Allow about 10% on top of the measured area for overlaps and joints.

Click to go to the top index

Choose your own size - call 01626 872886 for an instant price


Wall 8mm Mesh Membrane Prices - no fixings

Unique product - only from us - easy to carry, light to install single-handed, low cost delivery, no waste



Special width x 8mm thick, full rolls and by the metre

£78.28 - full roll, 960mm wide x 10 metres = price per 9.60 square metres -

£7.83 - cut by the metre, 960mm metres wide x 1 metre = price per 0.96 square metres -

(a £10.00 plus VAT Cutting Charge will be added for part rolls)



Standard width x 8mm thick, full rolls only

2 metre wide x 10 metre long rolls

£156.56 - full roll, 2m x 10m = price per 20 square metres -

Click to go to the top index

Choose your own size - call 01626 872886 for an instant price


Wall 8mm Special Mesh Membrane Complete Kit Prices - includes plugs,

mastic seal rope, fibre tape

Version Type - Standard 8mm thickness Mesh Membrane Kits, for direct Plastering with Bonding Plaster

Version size - 8mm thick x 960mm wide

Kit Includes - membrane, fibre joint tape, plugs (25 per sq.m.) & mastic rope seal.

£98.92 - 6 metres x 960mm = 5.76 square metres -

£161.47 - 10 metres x 960mm = 9.60 square metres -

£227.38 - 15 metres x 960mm = 14.40 square metres -

Click to go to the top index

Choose your own size - call 01626 872886 for an instant price


Wall 8mm Special Mesh Membrane Complete Kit Prices - includes plugs,

mastic seal rope, fibre tape

Version Type - Standard 8mm thickness Mesh Membrane Kits, for Plasterboard applied using 'Dot and Dab' adhesive

Version size - 8mm thick x 960mm wide

Kit Includes - membrane, fibre joint tape, plugs (15 per sq.m.) & mastic rope seal.

£89.98 - 6 metres x 960mm = 5.76 square metres -

£144.92 - 10 metres x 960mm = 9.60 square metres -

£205.04 - 15 metres x 960mm = 14.40 square metres -

Click to go to the top index

Choose your own size - call 01626 872886 for an instant price


Wall Slimline 3mm Mesh Membrane Prices - no fixings

Unique product - only from us - easy to carry, light to install single-handed, low cost delivery, no waste

1 metre wide rolls

£130.00 - full roll, 1 metre wide x 20 metres = price per 20 square metres -

£6.50 - cut by the metre, 1 metre wide x 1 metre = price per 1.0 square metres -

(a £10.00 plus VAT Cutting Charge will be added)



2 metre wide x 20 metre long rolls

£240.00 - full roll, 2m x 20m = price per 40 square metres -

Choose your own size - call 01626 872886 for an instant price


Wall Slimline Mesh Membrane Kits - examples

Version Type - Slimline 3mm thickness Mesh Membrane Kits, for direct plastering with Bonding plaster

Version sizes - 3mm thick x 1 metre wide

Kit Includes - membrane, fibre faced joint tape, plugs (25 per sq.m.) & mastic rope seal

£90.95 - 6 metres x 1m = 6 square metres -

£148.18 - 10 metres x 1m = 10 square metres -

£207.46 - 15 metres x 1m = 15 square metres -

Click to go to the top index


Version Type - Slimline thickness Mesh Membrane Kits, for plasterboard fixing using 'dabs' of adhesive

Version size - 3mm thick x 1 metre wide

Kit Includes - membrane, fibre joint tape, plugs (15 per sq.m.) & mastic rope seal

£82.01 - 6 metres x 1m = 6 square metres -

£123.47 - 10 metres x 1m = 10 square metres -

£185.12 - 15 metres x 1m = 15 square metres -

Click to see Tools and Accessories

Click to go to the top index


Plugs for Wall Mesh Membrane to take plaster or plasterboard

Allow 25 plugs per square metre for direct plastering, or 15 plugs per square metre for plasterboard fixed on adhesive 'dabs'

Mesh Membrane plugs, no seals fitted

Plugs = 62mm in length, drill an 8mm diameter hole x 75mm deep

Use the same quantity for Standard (8mm) and Slimline (3mm) Mesh Membrane versions.

£29.78 - green plug, bag of 200 -

£0.15 - individual green plug, each -

Click to see Plugs

Click to go to the top index


Mastic Rope for Plug Neck Sealing for Wall Mesh Membranes

Mastic Rope is sticky all over, 10mm diameter, use 20mm length per plug, cut using scissors

Fitting a Mastic Rope seal to a Plaster Plug for Mesh Membrane

Mastic Rope neck seal - 5 metre roll

£9.82 - Mastic Rope, 5 metre roll -

Click to see Mastic Rope for Seals

Click to go to the top index


Tape for joining Standard Wall Mesh Membrane

Double Sided - not for (3mm) Slimline Membranes (use our Fibre Tape)

Double sided mastic tape for Membranes

£30.88 - Joint Tape, 28mm x 2mm x 22.5m per roll -

Click to see Tape for Standard Mesh Membrane

Click to go to the top index


Fibre Covered Tape for joining Slimline Wall Mesh Membrane

Single Sided Fibre Faced Tape - for 8mm Mesh Membranes and 3mm Slimline Membranes

£40.80 - Fibre tape, 115mm x 2mm x 25 metres, per roll -

£1.63 - Fibre tape, per metre -

Click here to see Fibre Tape for Slimline Mesh Membrane

Click to go to the top index


Floor Membranes - for direct laying without plugs

Uses - to line damp or salty floors above or below ground

Roll of floor membrane - roll out and tape to seal.

Above - Kontract Floor Membrane - 8mm dimple height

Slimline Floor Membrane

Slimline Floor Membrane - 2mm groove/dimple height

Click here for information on Damp Proofing walls

Click to go to the top index


Thickness - 8mm dimple height or 2mm (Slimline Floorseal version) dimple height.

Widths - Full Width Rolls - 2 metres wide, or buy the Special Metre Rolls - 1 metre wide

Buy in - any length in metres, or Kits sized for your job, or full 2 metre wide x 20 metre long rolls

Unique - we cut rolls and supply fibre faced joining Tape for the Slimline version, by the metre

Measuring - if joints will be needed add 10% to the area measured.

Joints in the 8mm Membrane can be made by overlapping 3 rows of dimples or

by overlapping the plain edge of the membrane (found on 2 metre wide rolls only) onto the flat face.

Joints in the 2mm Slimline Membrane are made by butt jointing and applying single sided Fibre Tape.

Fitting - no plugs required. Loose lay and turn up 25mm at the edges, to be hidden by the skirting boards.

Fit skirting boards with a 5mm air gap at the bottom edge.

Finishing - on Standard 8mm Membrane lay either 75mm of sand and

cement screed, boarding (MDF, Plywood, Chipboard) or a 'floating' floor on wooden joists.

On Slimline 2mm Membrane you can also directly fit underlay and carpet, or any of the other floor options above.

Complete Kits - supplied with Tape.

Allow about 10% on top of the measured area for overlaps and joints.

Click to go to the top index


Floor Membrane Prices - no tape, in 2 metre and 1 metre widths



Standard 2 metre width 8mm Kontract Membrane

£174.20 - full roll, 2m wide x 20 metres long = price per 40 square metres -



Special 1 metre width 8mm Kontract Membrane

£4.36 - cut by the metre, 960mm metres wide x 1 metre long = price per 0.96 square metres -



Slimline Floorseal, Standard 2 metre width, 2mm Floor Membrane

£282.24 - Slimline Floorseal 2mm - 2 metres wide x 20 metres long - 40 sq.m -



Special Floorseal, Special 1 metre width, 2mm Floor Membrane

£7.06 - cut by the metre, 1 metre wide x 1m long = price per 1 square metres -

Click to go to the top index


Special width Floor Membrane 8mm thick Complete Kit - includes joining tape or rope - example prices

Version Type - 8mm thickness Kontract Floor Membrane Kits

Version size - 8mm thick x 960mm wide

Kit Includes - membrane, double sided 28mm x 2mm joint tape or Mastic Rope for overlapping joints

(Note - the cost of a roll of Tape can be deducted if no joints will be made. Call us to specify this option)

£45.95 - 6 square metres = 960mm x 6 metres = 5.76 square metres -

£73.19 - 10 square metres = 960mm x 10 metres = 9.6 square metres -

£106.21 - 15 square metres = 960mm x 15 metres = 14.40 square metres -

Click to go to the top index


Version Type - Slimline 2mm thickness Floorseal Membrane Kits

Version size - 2mm thick x 1 metre wide

Kit Includes - membrane, single sided Fibre Faced joint tape for butt edge joints

(Note - the cost of Fibre Tape can be deducted if no joints will be made. Call us to specify this option)

£62.13 - 6 square metres -

£96.88 - 10 square metres -

£140.32 - 15 square metres -



PRICE MATCH - our bespoke Kits are guaranteed cheaper than any other written offer.

Click here for our Dampfix Kits page - this shows you lots of Kit prices

for different sizes for each Membrane type

Click to go to the top index


Wall and Floor Membranes - Full Rolls only - without tapes, plugs and seals

Kontract Membrane - 8mm thick x 2 metres wide x 20 metres long = 40 square metres:

OR Special width roll - 8mm thick x 960mm wide x 20 metres long = 19.20 square metres

no mesh, for floors and walls, walls using battens fixed to the plug heads.

Kontract Membrane showing dimples, which are fitted downward, against the floor or wall surface.

Kontract Membrane - for floors and walls.

Slimline Floorseal Membrane - 2mm thick x 2 metres wide x 20 metres long = 40 square metres:

OR Special Narrow Roll - 2mm thick x 1 metre wide x 20 metres long = 20 square metres

no mesh, for floors only, can be directly boarded or carpet laid onto underlay.

Slimline Floorseal Membrane for floors only. Very thin, only 2mm.

Slimline Floorseal - for floors only

Mesh Membrane - 8mm thick x 2 metres wide x 10 metres long = 20 square metres.

OR Special Narrow Roll - 8mm thick x 960mm wide x 20 metres long = 19.20 square metres

For walls only, for direct plastering or plasterboard fixed on adhesive 'dabs'.

Mesh Membrane for walls only - takes plaster or plasterboard.

Mesh Membrane for walls only.

Slimline Mesh Membrane - 3mm thick x 2 metres wide x 20 metres long = 40 square metres.

OR Special Narrow Roll - 3mm thick x 1 metre wide x 20 metres long = 20 square metres

For walls only, for direct plastering or plasterboard fixed on adhesive 'dabs'.

Also available in rolls 1 metre wide x 20 metres long = 20 square metres.

Slimline Mesh Membrane for  walls only - will take plaster or plasterboard.

Slimline Mesh Membrane for walls only.

Click to go to the top index


Prices for full Membrane Rolls

Membranes on full rolls - 2 metre wide prices - no tapes, plugs or seals.

Discounts available - call us on 01626 872886

£174.20 - Kontract Membrane 8mm - 2 metres wide x 20 metres long - 40 sq.m -

£282.24 - Slimline Floorseal 2mm - 2 metres wide x 20 metres long - 40 sq.m -

£156.56 - Mesh Membrane 8mm - 2 metres wide x 10 metres long - 20 sq.m -

£240.00 - Slimline Mesh Membrane 3mm - 2 metres wide x 20 metres long - 40 sq. m -



Special width Membranes on full rolls - 1 metre/960mm wide prices - no tapes, plugs or seals.

£87.10 - Kontract Membrane 8mm - 960mm wide x 20 metres long - 19.20 sq.m -

£141.12 - Slimline Floorseal 2mm - 1 metre wide x 20 metres long - 20 sq.m -

£78.28 - Mesh Membrane 8mm - 960mm wide x 10 metres long - 9.20 sq.m -

£130.00 - Slimline Mesh Membrane 3mm - 1 metre wide x 20 metres long - 20 sq.m -

Click here for Installation Kits and Accessories

Click to go to the top index


Plugs and Seals for Wall Membranes with Battens

With moulded in 'blind' holes for screws

Kontract Membrane plugs with neck seals fitted

Brick plugs with seals fitted

Kontract Membrane Plugs showing seals

Showing screw for batten fixing

Click to go to the top index


Size - 11mm diameter - use in a 10mm diameter hole x 75mm deep.

Boxed in 200. Screw Size No. 10 or No. 12 , which is equivalent to 4mm to 4.5mm diameter.

Unique - we supply part boxes of plugs.

Fitting - drill holes through the dimples in the Membrane 10mm diameter x 75mm deep.

Blow or vacuum out all dust. Fit a neck seal washer to each plug and

bang into the holes until the seal is squashed against the membrane.

Finishing - cut wooden battens about 25mm to 50mm wide x 25mm to 50mm thick.

Drill a clearance hole through the wood to suit a No. 10 self tapping screw (4mm to 5mm diameter).

Screw the battens to the plug heads.

Fit insulation between the battens and then nail or screw plasterboard (or other board material) to the battens.

Click to go to the top index


Plug prices for Wall Membrane to take screws for wooden battens

Allow 5 per square metre

£110.28 - box of plugs with seals fitted, per 200 -

£0.55 - individual plugs with seals fitted, each -

Quantity Discounts Available - call 01626 872886

Click to go to the top index


Plugs and Mastic Rope for Mesh Wall Membranes

Wrap Mastic Rope around the neck in 20mm lengths

Fitting Mastic Rope as a neck seal onto a Plaster Plug for Mesh Membrane

Mesh Membrane Plug + Mastic Rope seal

Mastic Rope on a roll - for neck seal on Mesh Membrane Plugs

Mastic Rope, 10mm diameter x 5 metre roll

Click to go to the top index


Size - 9mm diameter plug - use in a 8mm diameter hole x 75mm deep. Bagged in 200.

Unique - we supply part boxes of plugs.

Fitting - drill holes through the dimples in the Mesh Membrane 8mm diameter x 75mm deep.

Blow or vacuum out all dust. Fit 20mm of Mastic Rope as a neck seal washer to each plug and

bang into the holes until the rope is squashed against the membrane.

Finishing - fix plasterboard with dabs of adhesive directly to the plug heads, or

plaster over the mesh using a Bonding Plaster.

Click to go to the top index


Plug prices for Wall Mesh Membrane to take plaster or plasterboard

Allow 25 plugs per square metre for direct plastering, or

15 plugs per square metre for plasterboard fixed on adhesive 'dabs'

Use the same quantity for Standard (8mm) and Slimline (3mm) versions.

£29.78 - green plug, box of 200 -

£0.15 - individual green plug, each -

Click to see Plugs

Click to go to the top index


Tape for 8mm thick Membranes

Joint Tape, Double Sided - sticky both sides

Joint Tape - double sided - sticky both sides

Protective paper in place

Click to go to the top index


Uses - for overlap joining Wall and Floor Membranes, except Slimline versions (use butt joints and single sided fibre tape)

Size - 28mm wide x 2mm thick x 22.5 metres long.

Fitting - blow, brush or vacuum all dust from mating surfaces.

Roll back the protective cover paper on one side and press the tape onto the membrane.

Bring the other side of the membrane over the tape (allow a 50 to 75mm overlap) and

then progressively peel back the protective cover paper as you press the two membranes together.


Tape for 2mm and 3mm thick Membranes

Fibre Faced Tape, Single Sided - sticky one side

Wide single sided corner tape

Protective paper backing in place

.Click to go to the top index


Uses - for butt joining Slimline Wall, Floor Membranes and Wet Room Membranes.

Size - 115mm wide x 25 metres long.

Fitting - blow, brush or vacuum all dust from mating surfaces.

Roll back the protective cover paper and press the tape onto

the surfaces of both butted membranes.

.Click to go to the top index


Tape Prices for joining all types of Membranes

Double Sided - not for Slimline Membranes

£30.88 - Joint Tape, per roll -

Single Sided - for Slimline Membranes

£40.80 - Fibre tape, per roll -

£1.63 - Fibre tape, per metre -

Click to go to the top index


Wide Tape for Corners and reinforcement

Single Sided - for over taping surfaces

Wide single sided tape for reinforcement of corners and joints in Membranes

Wide corner tape is 150mm wide x 10 metres long per roll.

Can be cut into narrower strips using scissors.

£27.00 - wide tape, per 10 metre roll -

Quantity Discounts Available - call 01626 872886

Click here for Installation Kits and Accessories

Click to go to the top index


Geotextile Membrane with filter face for underground use

Uses - for below ground in newbuild and extensions

Geotextile underground membrane, for protecting foundations

Geotex against new wall protects and drains

Geotextile membrane, showing dimples.

Edge reveals Filter Face material

Click to go to the top index


Tanking Applications - in new build for external installation against walls underground and up to the damp proof course level.

The dimpled layer provides an air gap and the welded on textile provides a filtration layer.

Uses - perfect for newbuild, extensions and changed ground levels

where walls may be subject to up to a 10 metre depth of underground dampness.

Walls to be protected are first coated with Technoseal,

to provide two types of waterproofing, in order to conform with the latest Building Regulations.

Size - 2 metres wide x 20 metres long, made of 2 layers totaling 10mm in overall thickness OR Special Version 960mm wide x 20 metres long

Preparation - clean the wall thoroughly, re-point as necessary then

apply two coats of Technoseal.

Fixing - top hang using Mesh Membrane Plugs at 200mm centres.

Join using using overlaps and double sided Joint Tape.

Finishing - fit a top cover, called Geotex Profile Strip, along the top edge, at DPC level,

to stop water from running down behind the membrane.

Fix the Profile Strip using stainless steel screws in plastic wall plugs.

Geotex Profile Strip cross sectional view

Profile Strip for covering the top edge of Geotextile

Click to go to the top index


Geotextile Membrane Prices

For full rolls only - 2 metres wide x 20 metres long

£359.58 - 40 square metres of Geotex Roll -



For full rolls only - 960mm wide x 20 metres long

£179.79 - 19.20 square metres of Geotex Roll -



For Special Geotex by the metre - 960mm wide x 20 metres long

£9.36 - 960mm x 1 metre = 0.96 square metres of Geotex -

Geotextile Accessories

£8.00 - Top Edge Cover Profile Strip - 2m long -

£30.88 - Joint Tape, per roll -

£29.78 - plugs, box of 200 -

£0.15 - individual plug, each -

Click to see Plugs


Wet Room Floor Membrane - decouples, to avoid cracking

Uses - wet room floors, shower room floors, kitchen floors, balcony decks

Dural Wet Room Floor Membrane

Dural floor (yellow) on tiling adhesive,

followed by adhesive then Tiles.

Click to go to the top index


Size - 3mm thick, 1 metre wide

Usage rate - the 1 metre wide material covers 1 square metre and can be butt jointed.

Allow Waterproof Tiling Adhesive at 3 litres per square metre, per side.

Data Sheet - click here

Video Instructions - click here

Click to go to the top index


Wet Room Floor Membrane Price

We cut any length

£11.92 - Membrane per metre -

Click to go to the top index


Wet Room Shower Base Kit with drain

Dural Shower Kit

Shower Kit - £188.15 - Special Offer - at cost - call 01626 872886


Uses - as a complete shower, or as part of a wet room or

bathroom shower over concrete or timber floors.

Installation - simply lay the panels and bond to the floor with the Waterproof Tiling Adhesive.

Butt joints may be taped for reinforcement.

Size - 1 metre x 1 metre, inward sloping quarters.

Allow Waterproof Tiling Adhesive at 3 litres per square metre, per side.

Data Sheet - click here

Video of Installation - no sound - click here


Wet Room Wall Membrane

We cut any length

£12.49 - Membrane per metre -


Joining Tape for Wet Room Wall and Floor Membranes

Single sided Fibre Tape

For butt joining Dural Membranes

Fibre tape for joining Slimline Membrane is 115mm wide x 25 metres long per roll.

£40.80 - Fibre tape, per 25m roll -

£1.63 - Fibre tape, per metre --


Liquid Rubber Membrane, Technoseal

Uses - for sealing roofs, floors and walls indoors and outdoors

Technoseal Membrane - seals sufaces

Special Uses - preferred for sealing walls partly below ground,

external walls below the DPC and to seal damp concrete floors.

Can be used under plaster or a screed to provide a damp proofing layer.


Unique features - one pack, no mixing, water based, no smell

Roofing - Technoseal is quick drying, flexible and available in White,

for good UV Light reflection and long term resistance to weathering.

Can be used to overcoat existing tars, bitumen and roofing felts.

Sizes - 5 litre plastic cans

Coverage - 2 to 6 square metres per litre, depending on surface roughness and porosity.

Colours - white and black


Technoseal Liquid Membrane Prices

£30.46 - Black - 5kgs -

£30.46 - White - 5kgs -

Quantity Discounts Available - call 01626 872886


Liquid Epoxy Membrane, Epoxy Seal Coat

Uses - for sealing roofs, floors and walls

Epoxy Seal Coat Clear - two pack solvent free epoxy coating

Epoxy Seal Coat Clear being brushed

Also available in Grey


Sizes - 1 litre, 2.5 litre or 5 litre two part packs.

Colours - clear or grey (RAL 7042)

Coverage - from 2.5 to 7 square metres per litre,

depend on surface roughness and absorption.

Unique features - a very strong damp proofing epoxy membrane,

applied by brush or roller, available in clear or grey.

Ultra Epoxy Seal coating is perfect for sealing damp concrete floors,

damp screeds, damp slab and tiled floors,

to prevent the passage of moisture and moisture vapour.


Liquid Epoxy Membrane Prices

£38.65 - Clear - 1 litre -

£66.35 - Clear - 2.5 litre -

£124.47 - Clear - 5 litre -

£38.65 - Grey - 1 litre -

£68.24 - Grey - 2.5 litre -

£128.42 - Grey - 5 litre -

Epoxy Seal Coat can be used to prepare old or new concrete or

screeded floors for direct laying of wooden floors.

It acts as a complete vapour barrier.

Can be used to overcoat bitumen, tar and other paints.

Contains no water or solvent.


Sumps and pumps

Uses - for drainage under floor membranes

Black Sump Kit - a black plastic sump bucket, 560mm high x 460mm diameter (widest),

supplied with a composite screw down lid and seal.

Includes a powerful pump incorporating float switch, for automatic on/off control.

Black sump, sump pump and plumbing fittings

Yellow Sump Kit - a yellow, heavy duty sump chamber, 580mm high x 600mm diameter (widest),

supplied with a heavy duty, galvanized screw down lid and seal.

Includes a powerful pump incorporating float switch, for automatic on/off control.




Aquachannel - perimeter drain, outlets and jetting eyes

Uses - Special plastic channel with built in entry holes to

collect water from around the perimeter of cellars and basements.

Supplied in 2 metre lengths. Join with our Mastic Sealant or Joint Tape.

Aquachannel, showing end section and drainage holes

Aquachannel

Aquachannel Jetting Eye

Jetting Eye


Sumps and Pump Prices - supplied with one pump and

internal plumbing fittings

Black Sump Kit - £552.63 plus VAT -

Yellow Sump Kit - £695.00 plus VAT -



The pumps are complete with the pipe adapters and couplings to

reach the outside of the sump bucket, to which you can connect standard white waste pipework to

connect to the nearest drain or grey water pipe.

It incorporates an internal ledge on which a back-up pump can be located.


Accessories Prices - Aquachannel, Jetting Eyes, Outlets

Aquachannel, 2m - £24.60 plus VAT -

Outlet, centre run - £38.50 plus VAT -

Jetting Eye, screw top - £38.50 plus VAT -


Tools and Accessories for fitting Membranes

Drill Bits - SDS+ for plugs: use 8mm diameter for Mesh Membrane Plugs and

10mm diameter for Kontract Membrane Plugs.

Always drill holes at least 15mm longer than the plug length, to allow for dust build up.

Drilling Template for Mesh Membrane - 15 and 25 plugs per square metre - paper template giving

the correct hole spacing for Mesh Membrane for either 15 plugs (for plasterboard dabs) or

25 plugs (for direct plastering) per square metre.

Plumb Line - for setting out your sheets and battens,

to keep them vertical to fit plasterboards.

Blow-out Pump - a small hand pump with an extension tube used to

blow the dust out of the plug holes.

Prevents plug breakage caused by bottoming out in the hole dust.

Industrial Scissors - for cutting Membranes easily.

Plastic Headed Mallet - ideal for knocking in the plastic plugs

without damaging the plugs or the membrane.

Wire Broom - for cleaning brickwork and concrete prior to fitting Membranes

Vinyl Gloves - disposable, uni-handed, to keep hand clean ready to handle

the self adhesive Mastic Rope and Tape.

Battens - we'll machine battens to your preferred size and cut them to length

Self Tapping Screws - zinc plated, countersunk Pozi head,

for fixing battens to plug heads.


Tools and Accessories Prices

Drill Bits, SDS+ for plugs -

8mm x 160mm - £5.96 -

10mm x 160mm - £9.33 -

Drilling Template - £4.96 -

Plumb Bob & Line - £6.95 -

Blow out pump - £4.99 -

Industrial Scissors - £9.22 -

Plastic Headed Mallet - £12.94 -

Wire Broom with handle - £16.98 -

Box of 100 Gloves - £10.97 -

Battens - to Order - please specify sizes. We will machine to your specification.

Self Tapping Screws - to fit battens. Sized by us according to your choice of batten thickness

(screw length maximum equals batten thickness + 20mm)

Quantity Discounts Available - call 01626 872886


Chemical Treatments to use with Membranes

Damp Proofing Cream - to insert a new damp proof course

at the correct level.

Damp proofing cream and skeleton gun



Damp Proofing Drilling Template - paper template giving the correct hole and

level spacing for damp proof course injection.

Flexible Crack Filler - for sealing wall and floor holes,

cracks and the floor to wall joint that could all be

weaknesses behind your membrane.

Flexible crack filler grout



Leak Stop Powder, Hydraplug - for virtually instant water leak stoppage.

Just mix with minimum water and hold until warm.

Then ram in to the crack or hole, pare off the excess with a scraper.

Leak stopping powder - Hydradry

Salt Neutralizer - to treat all floors and walls before fixing membranes,

to prevent limescale build up behind the membrane

where 'active' water movement is taking place.

Salt Neutralising fluid

Dry Rot Paint - to paint selectively on walls and

floors as a Dry Rot prevention zone.

A low odour Emulsion Paint, easy to apply and quick drying.


Chemical Treatments to use with Membranes

380cc tube of damp proofing cream.

Inject via 12mm diameter holes drilled into the joints or bricks.

Damp Proofing Cream -

£14.25 plus VAT -

Drilling Template -

£3.25 plus VAT -

Flexible Crack Filler -

£42.12 plus VAT -

Leakstop, Hydraplug -

£23.98 plus VAT -

Salt Neutralizer, 1L -

£14.70 plus VAT -

Salt Neutralizer, 5L -

£47.35 plus VAT -

Quantity Discounts Available - call 01626 872886


Shopping on our Site is Safe!

Click to View your Shopping Cart

When you provide us with any personal information including your name,

address, e-mail and credit card number,

it is processed over a secure connection on secure servers.

We use Secure Socket Layers (SSL) to encrypt all information

you provide before sending it to our servers.

SSL is the industry standard and the best software

available for secure ecommerce transactions.

We accept the following cards: Maestro, Visa, MasterCard


Use any of our Shopping Pages to place goods in your Shopping Cart.

They all use the same Shopping Cart system.

Click here to view your Shopping Cart

or continue shopping by clicking on one of our Shops below.

OUR CLOSELY RELATED SHOPPING PAGES


Property Repair Systems

T: 01626 872886

E: help@propertyrepairsystems.co.uk


Site written by: David Moore

David Moore, B.A. (Hons.), C.T.I.S., C.R.D.S. Technical Author

Google+


Damp | Plastering | Membrane
Damp Meters | Anti-Mould Additives
Privacy Policy | Returns Policy
Contact

Other Property Repair Systems Sites:

www.boron.org.uk - how to use Boron based insecticides/fungicides to treat timber rots and insect attack

www.dampness-info.co.uk - how to treat penetrating dampness in walls and plaster

www.deck-treatment.co.uk - how to treat patio decks and yacht decks

www.dryrot.biz - how to kill Dry Rot in buildings

www.epoxy-info.co.uk - epoxy resins for repairing wood, concrete, brick and stone

www.fire-door-paint.co.uk - upgrade doors to 30 minutes fire resistance

www.joist-repair.co.uk - how to quickly repair joists and beams of any size

www.propertyrepairsystems.co.uk - our Home Site

www.steel-fire-paint.co.uk - treat steel with Intumescent Paint to provide fire protection

www.timber.org.uk - systems of repair, with step by step methods

www.timber-repair.co.uk - how to repair timber beams

www.woodworm-info.co.uk - how to kill and prevent woodworm and death watch beetle

www.woodworm-expert-advice-forum.org.uk - all your questions and our answers about woodworm treatment DIY
